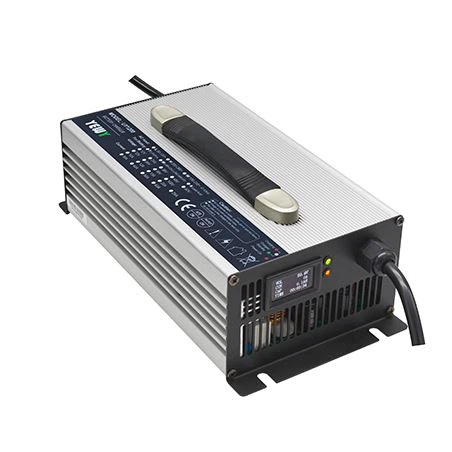

This UY1200 model with the LCD display, can show the volatge, current, battery capacity and the charge time. Also can show the error. And this charger has timer function, default setting is 10Hours. The whole charging time will not exceed 10hours, otherwise it will cut off the output and display as the picture attached. We can set the charging time, or cancel the timer function, please let me know if you need this function or not. (Note: the time only can be set by us before product leaves out of factory.)
All Information can be set as your requirement
GZUY | Charger Model Information | |
UY1200Z-HF4820 | ||
FAULT | Battery is unconnected | |
No Load！ | ||
29.4V | 20A | Charging voltage, Charging current |
10AH | 1:12:30 | Capacity charged, Time charged |
Battery Full | ||
7:10:20 | 80AH | Total charging time, Total AH charged |
Over Time | Timeout indication | |
10:00:00 | 75AH | 10Ah(default time), AH Charged |
FAULT | Over Current Indication | |
Over Current! | ||
FAULT | Over Voltage Indication | |
Over Voltage! | ||
FAULT | Short Circle Indication | |
Short Circle! | ||
FAULT | Reversed Indication | |
Connect Reversed | ||
FAULT | Over Temperature Indication | |
Over Temperature | ||
| Specification | Li-ion | Lifepo4 | Lead acid | Charging current |
| 12V 70A | 12.6V/16.8V | 14.6V | 14.7V | 70A |
| 24V 45A | 25.2V/29.4V/ 33.6V | 29.2V | 29.4V | 45A |
| 36V 30A | 42V/46.2V | 43.8V | 44.1V | 30A |
| 48V 25A | 50.4V/54.6V/58.8V | 54.75V/58.4V | 58.8V | 25A |
| 60V 20A | 63V/67.2V/71.4V | 73V | 73.5V | 20A |
| 72V 16A | 79.8V/84V | 87.6V | 88.2V | 16A |
| 84V 14A | 88.2V | 102.2V | 107.8V | 14A |
Table 1. Unpacking Inspection
Item | Description | Qty |
1 | Charger | 1 |
2 | Operating manual | 1 |
3 | AC wire | 1 |
FAQ
Q: Are you a factory?
A: Yes, We are a professional battery charger manufactory in Guangzhou, ISO9001 factory
Q. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q. What about the lead time?
A: Samples arrived often need 3-5 days.
Q: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products.
As long as the charger is not unplugged, the coil will always have current flowing through it and will continue to work, which will undoubtedly consume power.
So when we charge, we need to disconnect the power.
