universal lithium battery charger correct charging sequence: "Plug the battery first, then the power supply" when charging, and "pull out the battery end first, then the input end" when unplugging, this sequence will cause less damage to the battery and charger.

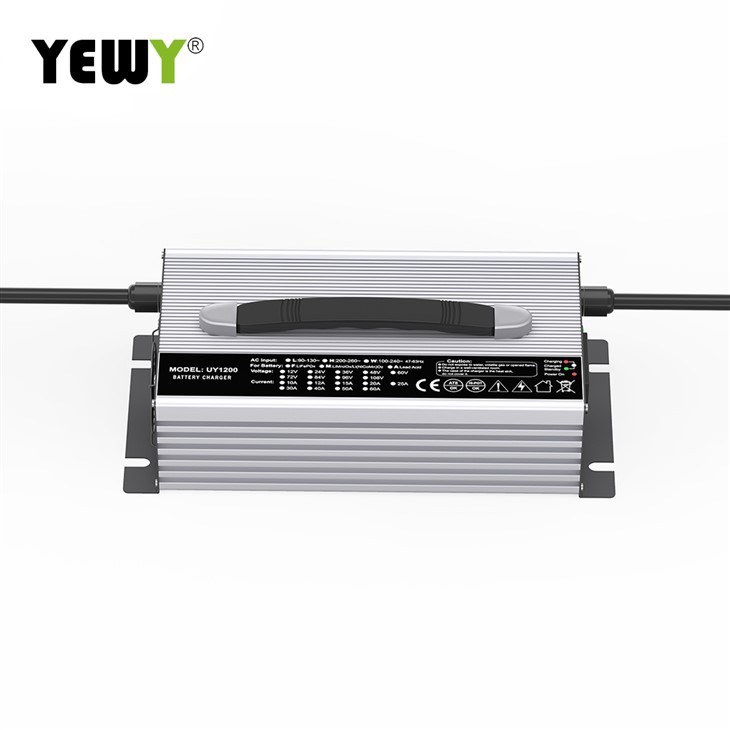

The specifications of UY1200 Charger
| Specification | Li-ion | Lifepo4 | Lead acid | Charging current |
| 12V 50A | 12.6V/16.8V | 14.6V | 14.7V | 50A |
| 24V 35A | 25.2V/29.4V/ 33.6V | 29.2V | 29.4V | 35A |
| 36V 25A | 42V/46.2V | 43.8V | 44.1V | 25A |
| 48V 20A | 50.4V/54.6V/58.8V | 54.75V/58.4V | 58.8V | 20A |
| 60V 15A | 63V/67.2V/71.4V | 73V | 73.5V | 15A |
| 72V 12A | 79.8V/84V | 87.6V | 88.2V | 12A |
feature:
1. Short circuit protection
2. Overvoltage protection
3. Reverse polarity protection
4. Overcurrent protection
5. Over temperature protection
6. Reliable, elegant, small size, light weight
7. Input voltage options:100-120Vac or 200-240Vac
8. CE&ROHS certification, safe and high quality
9. Efficiency: ≥80% (full load)
10. Fully automatic conversion of CC, CV (lithium ion/LiFePo4) and Float/Cutoff (lead acid)
The charger has a full shutdown function, which can detect the battery voltage to determine whether the charger continues to charge or stops charging. This power-off function is a good way to avoid the car owner's worry that the battery will be damaged by "overcharging" caused by unplugging and charging for too long before it is fully charged.
FAQ
Q: Can I order samples?
Answer: Yes, we can provide initial samples. But our samples are not free. We need to charge for samples.
Q: Do you have any MOQ (Minimum Order Quality) restrictions?
Answer: Low MOQ, can provide 1 sample for inspection.
Q: What time do you ship my order?
A: The production time is normally 5-6 working days after receiving your payment for samples, but it can be negotiated based on order qty.
Q: Can you send the chargers to abroad Door to Door?
A: Yes, we can send the chargers by expresses, and they are Door to Door.
We produce the universal lithium battery charger, waterproof battery charger IP65, power rating from 50 Watts to 2500 Watts. All these battery chargers are widely used for electric scooters, electric ATVs, electric vehicles, electric robots, Energy storage battery etc.
