Our company mainly provides chargers for major electric vehicle plants at home and abroad, new energy batteries, AGV storage and transportation, Al robots, etc.Our company provides customers with the optimal solution for the characteristics of the charger topology according to the requirements of different industries. We total have 25 patents, 2 of them are in announcement periods, 15 utility model patents, 3 software copyrights, 2 appearance patents, and keep 5-10 patents increasing every year.
| Product name: | auto battery charger |
| Certification | CE |
| Wattage | 600W |
|
Dimensions |
262*86*136mm |
| Charging Method | pre-charge, CC, CV, floating / trickle, shutoff |
| AC Input Voltage | 100-240Vac |
| AC Input Frequency | 50/60Hz |
This series uses the same CCM PFC + LLC circuit as the L series, and has the same advantages as the L series.
1. At the same time, the whole machine is sealed with a potting process, and the case is filled with thermally conductive silicone, so the whole machine can reach IP65 protection level, which is suitable for more environments.
2. No cooling fan is used, making the unit quiet and noiseless during operation.
3. The 300LP and 360LP have CE, CB , C-TUV-US certification.

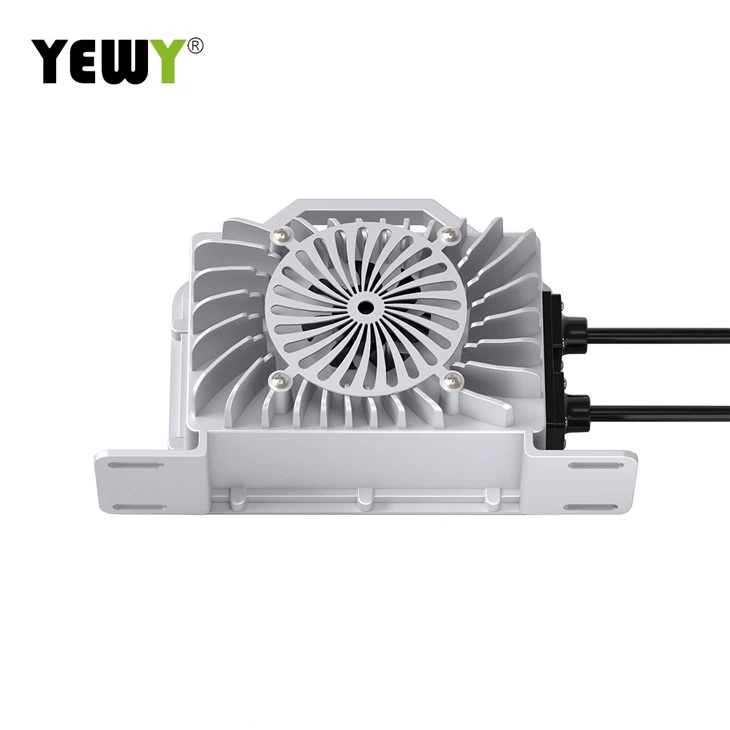

UY600S Auto Battery Charger
| Specification | Li-ion | Lifepo4 | Lead acid | Charging current |
| 12V 25A | 12.6V/16.8V | 14.6V | 14.7V | 25A |
| 24V 18A | 25.2V/29.4V/33.6V | 29.2V | 29.4V | 18A |
| 36V 12A | 42V/46.2V | 43.8V | 44.1V | 12A |
| 48V 10A | 50.4V/54.6V/58.8V | 54.75V/58.4V | 58.8V | 10A |
| 60V 8A | 63V/67.2V/71.4V | 73V | 73.5V | 8A |
| 72V 6A | 79.8V/84V | 87.6V | 88.2V | 6A |
S Series:
This series of products use CCM PFC +LLC resonant half bridge topology.
1. CCM PFC switching tube peak current is small, inductor core utilization is high, electrolytic capacitor ripple current is small, more suitable for medium and high power applications.
2. LLC resonant half bridge, the primary switching tube works in ZVS, the secondary rectifier tube works in ZCS state, which greatly reduces the switching loss of the power tube. High efficiency of the whole machine, small heat generation.
3. At the same time, the power stage current is sinusoidal, EMI interference is small.
4.At the same time, the whole machine is sealed with a potting process, and the case is filled with thermally conductive silicone, so the whole machine can reach IP65 protection level, which is suitable for more environments.
Guangzhou Yunyang Electronic Technology Co., Ltd., founded in 2013, is a national high-tech enterprise which is specializing in production, development and sales of chargers, providing professional supporting charging power supply solutions for new energy battery plants at home and abroad, AGV storage and transportation, agricultural UAVs, AI robots, etc. Yunyang has a dozens-member R&D team, thousands of square meters manufacturing base, 25 product patents, and we have obtained the CE,UL,CB,GS,FCC,KC,SAA C-TUV-US etc certificates.
FAQ
Q:Can I have a sample order of auto battery charger?
A:Yes, we can provide an initial sample. But our samples are not free. We need to charge for the samples.
Q: How do you ship the goods and how long does it take to arrive?
A:We often ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.
Q:Can I have a sample order?
A:Yes, we can provide an initial sample. But our samples are not free. We need to charge for the samples.
Q:Do you have any MOQ (minimum order quality)limit?
A:Low MOQ, 1pc for sample checking is available.
Lead-acid batteries and lithium battery chargers are not compatible. The voltage ratings of lead-acid and lithium-ion batteries do not match. There are many types of lithium batteries, and battery performance and battery protection parameters may vary.
Hot Tags: auto battery charger, China, suppliers, manufacturers, factory, custom, wholesale, Gel battery charger
