product key technologies
Operating Conditions
The charger can operate continuously in all modes under the following environmental conditions without performance degradation: Ambient temperature: -20℃ ~ +40℃; Relative humidity: 5% ~ 95%; Maximum altitude: 2000 m; Cooling: The UY3K3S series charger adopts forced air cooling. In a well-ventilated environment, the temperature rise at full load shall not exceed 40℃.
Operating Conditions
Grid overvoltage protection: The charger shuts down its output once the grid voltage exceeds the threshold, and resumes automatically after the grid voltage returns to normal.
Grid undervoltage protection: The charger shuts down its output once the grid voltage drops below the threshold, and resumes automatically after the grid voltage returns to normal.
DC bus overvoltage protection: The charger cuts off the output when the internal bus voltage exceeds the threshold, with automatic recovery once voltage normalizes.
Primary overcurrent protection: The charger disables output when primary-side current exceeds the limit, and recovers automatically.

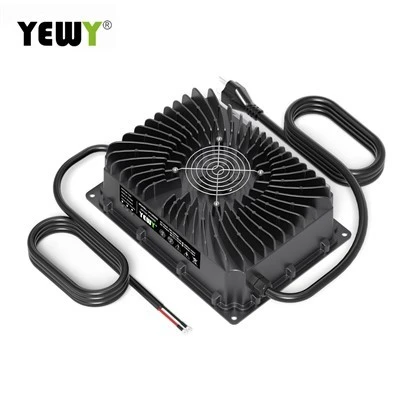

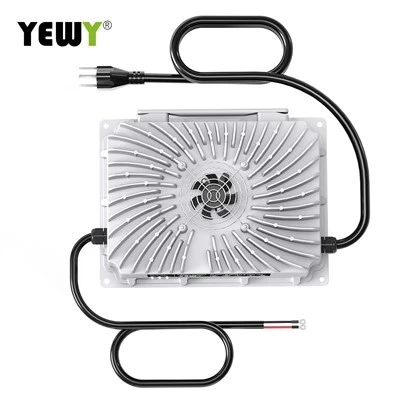

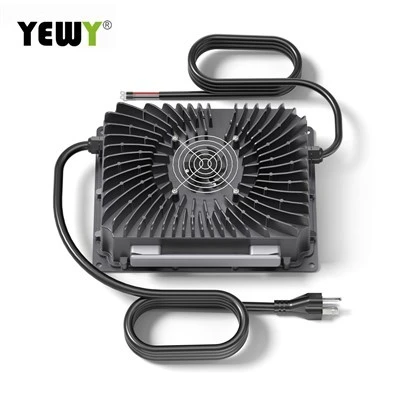

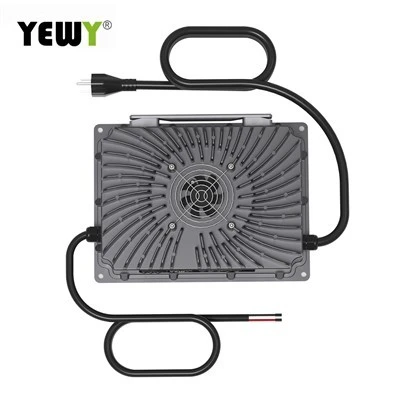

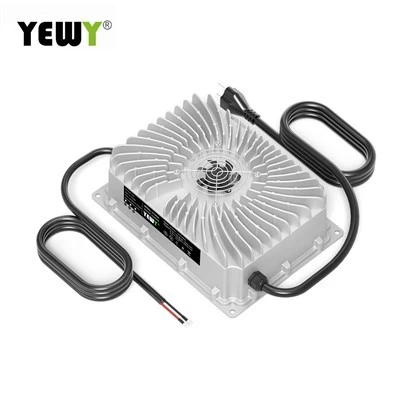

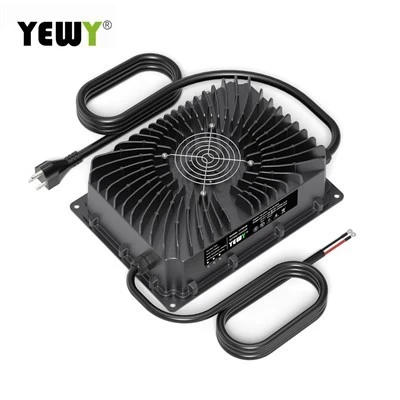

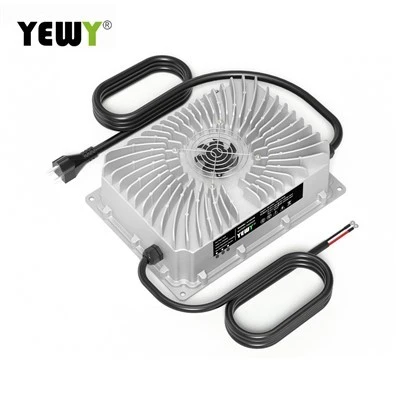

waterproof OBC Charger
waterproof OBC Charger
|
Item |
vb7235 |
||
|
Output |
Output volt(V) |
b=F |
87.6 |
|
b=M |
84.0 |
||
|
b=A |
88.2 |
||
|
Float volt(V)(only b=A) |
82.8 |
||
|
Recharge Voltage(V) |
b=F |
75.6 |
|
|
b=M |
78 |
||
|
Voltage Fluctuation(V) |
±0.3 |
||
|
220V AC |
Max current(A) |
35 |
|
|
Customizable Current(A) |
≤35 |
||
|
Max. Power(W) |
3087 |
||
|
110V AC |
Max current(A) |
15 |
|
|
Customizable Current(A) |
≤15 |
||
|
Max. Power(W) |
1323 |
||
|
Charge complete current (A) |
b=F |
2.8 |
|
|
b=M |
2.8 |
||
|
b=A |
8.8 |
||
| Current error |
±5% |
||
| Ripple voltage |
≤2%VOUTMAX |
||
|
Input |
Voltage Range |
v=W,100V~240VAC;v=H,200~240Vac;v=L,100~120Vac |
|
| Frequency range |
47~63Hz |
||
| Power Factor |
PF>0.98/115VAC, PF≥0.99/230VAC at full load |
||
| Full-load Input Efficiency |
≥91.2%/115VAC,≥93.5%/230VAC |
||
| Input current(type) |
v=W：15A |
||
| Vomit (type) |
COLD START≤50A at 230VAC |
||
| Leakage Current |
＜0.75mA |
||

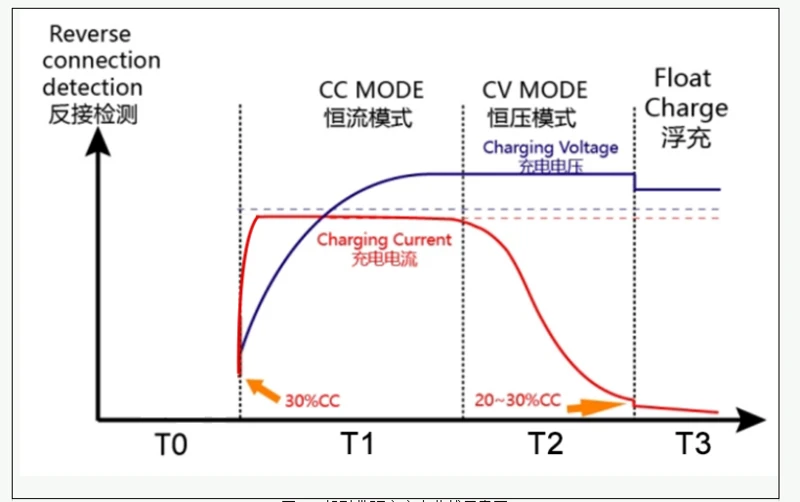

Charging Profile Description
T0 Reverse Polarity Detection: Within 2 seconds after the charger is connected to AC power, the output remains disabled while the charger checks for reversed battery connection. A fault alert will trigger if the polarity is reversed. It proceeds automatically to the next stage if the connection is correct.
T1 Constant Current Stage: The charger enables output. Once a battery is detected, the output current quickly rises to the maximum value for fast charging. The charger automatically moves to the next stage when the battery voltage reaches the peak charging voltage.
T2 Constant Voltage Stage: The charger maintains the output voltage at the full-charge voltage. The battery continues charging while the charging current gradually decreases. The battery is judged fully charged when the current drops to 5%–10% of the maximum charging current.
T3 Float Charge Stage: The voltage is reduced for slow, low-current continuous charging. If the AC power supply stays connected, the charger remains in T3 float mode to keep the battery fully charged.
Guangzhou Yunyang Electronic Technology Co.,Ltd is a high tech company, which is specialized in design, manufacturer and sales, and focus on charging power supply supporting services. Originated in Guangzhou, the Great Bay Area of Guangdong, Hong Kong and Macao, China, it has actively participated in the trend of achieving the goal of carbon peak and carbon neutrality, and contributed its wisdom, enthusiasm and perseverance to the early realization of the goal of carbon peak carbon neutrality for the country.
After-sale service
1. 1 year warranty
2. We will replace the broken parts with new parts in the next order
3. Choose the cheapest and safest shipping company.
4. Track the order until you get the goods.
How to order?
Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places payment for formal order.
Fourthly We arrange the production.
Warning :
Before conducting the following operations, make sure the charger is disconnected with the battery and power connection
Routine maintenance
Clear dust on vents and fan regularly, to ensure the charger has good heat dissipation.
Periodically wipe the case with a cloth with some alcohol.
Do not use or store the charger in a place of humidity or high temperature.
FAQ
Q: Are you trading company or manufacturer.
A: We are factory. And we are providing ODM/OEM.
Q: How does your factory do regarding quality control?
A: "Quality is our culture and 100% test." We always attach great importance to quality controlling from the very beginning to the very end.
Q: Do you provide waterproof OBC Charger?
A: Yes, we could offer the sample for but need pay sample price and shipping charge.
Q: How long is your delivery time?
A: Normally it is 7-10 days, it will depend on quantity.
Q: What is your terms of payment?
A: we can accept Trade Assurance/TT. Q: How long is the warranty period? A: 18 months. Q: May I get a sample of your products to check quality? A: Yes, of coourse. Sample orders are welcomed for quality checking. We will offer you the same price Q: What is the shipping cost for a sample? A: The dimension and weight of each model is different. We will provide you the shipping cost when you confirmed the model.
