As a seasoned supplier in the battery charger industry, I've witnessed firsthand the confusion that often surrounds the different colors of indicator lights on battery chargers. These lights are not just random adornments; they are crucial indicators that convey important information about the charging process. In this blog, I'll delve into what these colors mean and how they can help you ensure the proper charging of your batteries.
The Basics of Indicator Lights
Indicator lights on battery chargers serve as a visual communication tool between the charger and the user. They provide real - time feedback on the status of the charging process, such as whether the battery is charging, fully charged, or if there is an issue. Different manufacturers may use different color schemes, but there are some common colors and their meanings that are widely recognized.
Red Light: Charging in Progress
One of the most common colors you'll see on a battery charger is red. A red indicator light typically means that the battery is currently being charged. When you plug in your battery to the charger and see a red light, it's a sign that the charger has detected the battery and has started supplying power to it.

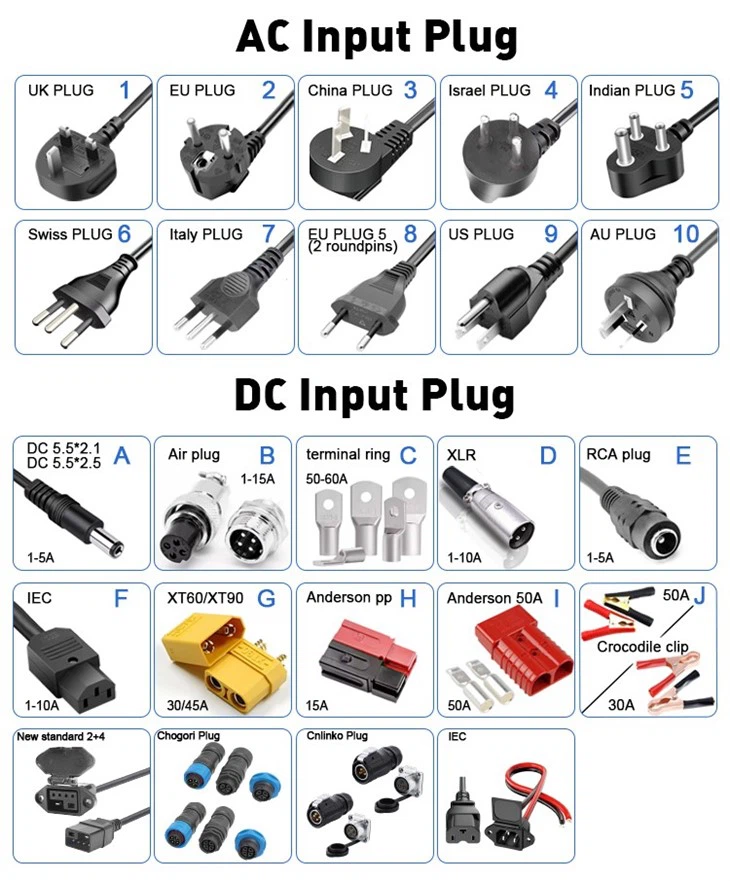

This process can take some time, depending on the capacity of the battery and the charging rate of the charger. For example, our 12V 70A Battery Charger is designed to charge large - capacity 12V batteries relatively quickly, but even with a high - amperage charger, a deeply discharged battery may take several hours to reach a full charge.
During the charging process, the red light will remain illuminated. It's important to note that the battery should not be removed while the red light is on, as this can lead to an incomplete charge and may reduce the overall lifespan of the battery.
Green Light: Fully Charged
Once the battery has reached its full charge, the indicator light on the charger will often turn green. A green light is a clear signal that the battery has received all the energy it can hold and is ready to be used. This is a crucial moment, as overcharging a battery can cause damage to its internal components and reduce its performance over time.

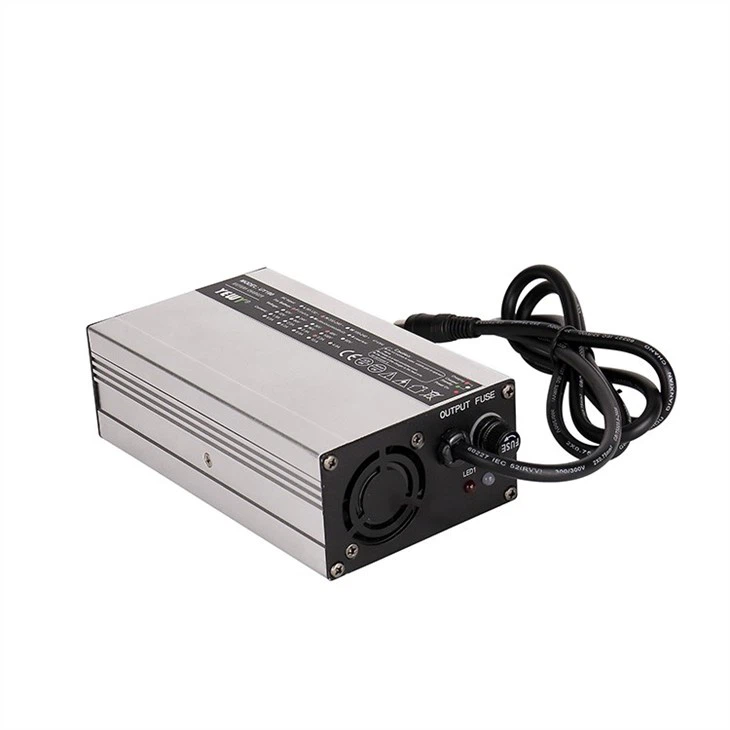

When you see the green light, you can safely remove the battery from the charger. Our Smart Battery Charger is equipped with advanced charging algorithms that automatically adjust the charging process to prevent overcharging. Once the battery is fully charged, the charger will switch to a maintenance mode, which helps to keep the battery at its optimal charge level without overcharging it.
Yellow Light: Trickle Charging or Battery Detection
In some cases, you may see a yellow indicator light on your battery charger. A yellow light can have different meanings depending on the charger model. In some chargers, a yellow light indicates that the charger is in trickle - charging mode. Trickle charging is a slow and low - current charging process that is used to maintain the charge of a fully charged battery over an extended period.
For example, if you have a battery that you don't use frequently, such as a backup battery for a solar power system, you can leave it connected to the charger in trickle - charging mode. The yellow light will let you know that the charger is providing just enough power to keep the battery charged without overcharging it.
In other chargers, a yellow light may indicate that the charger is detecting the battery. When you first connect the battery to the charger, the charger needs to determine the battery's voltage, capacity, and other parameters. The yellow light during this phase shows that the charger is in the process of gathering this information before starting the actual charging process.
Flashing Lights: Error or Fault
Flashing indicator lights are usually a sign that something is wrong with the charging process. A flashing red light, for example, may indicate a short - circuit in the battery or the charger. This could be due to a damaged battery, a loose connection, or a problem with the charger itself.
A flashing yellow light might suggest a problem with the battery's internal resistance or a communication issue between the battery and the charger. If you encounter a flashing light, it's important to stop the charging process immediately and check the battery and charger for any visible signs of damage.
Our Battery Powered Charger is designed with built - in safety features to protect against short - circuits and other faults. However, if you experience a flashing light, it's best to contact our technical support team for further assistance.
Importance of Understanding Indicator Lights
Understanding the meaning of the different colors of indicator lights on your battery charger is essential for several reasons. Firstly, it helps you ensure the proper charging of your batteries, which in turn extends their lifespan. Overcharging or undercharging a battery can lead to reduced capacity, shorter run - times, and ultimately, the need for more frequent battery replacements.
Secondly, it enhances safety. By knowing what the different lights mean, you can quickly identify and address any issues that may arise during the charging process. This reduces the risk of fire, explosion, or other safety hazards associated with faulty charging.
Conclusion
In conclusion, the indicator lights on a battery charger are not just decorative elements; they are vital tools that provide valuable information about the charging process. Whether it's a red light indicating charging, a green light showing a full charge, a yellow light for trickle charging or detection, or a flashing light signaling an error, each color has a specific meaning that can help you make the most of your battery charger.
If you're in the market for a reliable battery charger, look no further. As a leading supplier of battery chargers, we offer a wide range of products, including Smart Battery Chargers, 12V 70A Battery Chargers, and Battery Powered Chargers. Our chargers are designed with the latest technology to ensure efficient and safe charging.
If you have any questions about our products or need assistance in choosing the right charger for your needs, please don't hesitate to contact us. We're here to help you make the best decision for your battery charging requirements.
